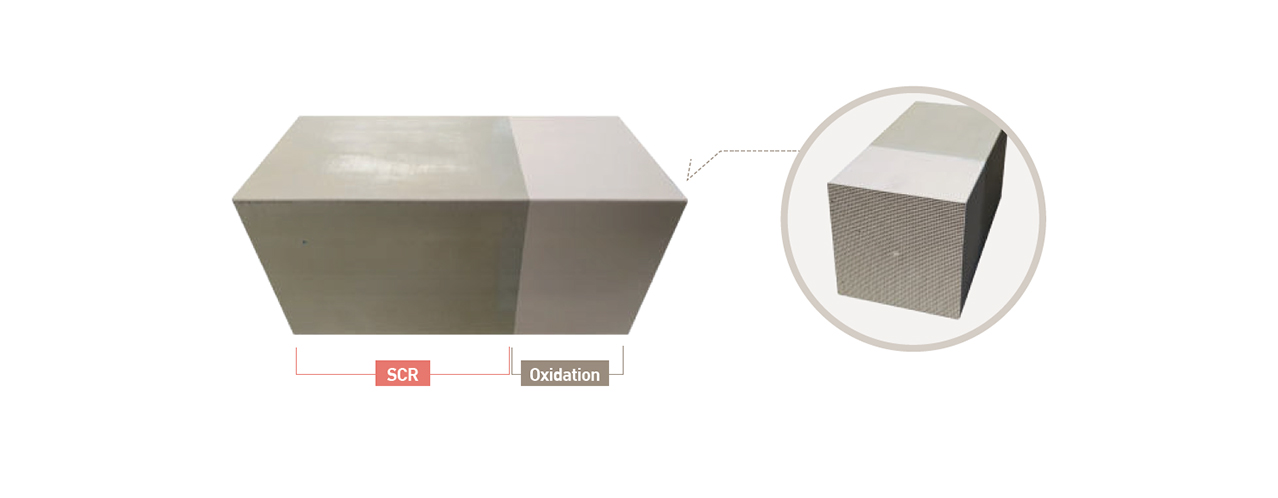

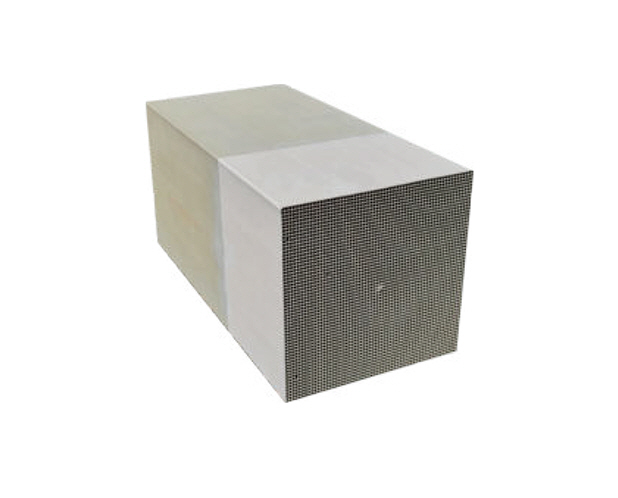

Korea’s First SCR-Oxidation Multi-Function Catalyst Manufacturer The NM catalyst is a unique product that adds oxidation capability which is prepared by coating a material with an oxidation function on the pre-existing SCR catalyst
-
Product Usage
Simultaneous removal of NOx, CO, VOCs and NH3 slip
-
Features
High De-NOx & oxidation efficiency, simple retrofitting to existing SCR systems
-
Application
Natural gas power plant, Heat recovery steam generator (HRSG), Industrial boiler, etc.
-
Patents
-
Catalyst structure for DeNOx-Oxidation and manufacturing method thereof (Patent No. 10-2503324, Korea, 2023)
-
Catalyst for ammonia oxidation and its manufacturing method (Patent No. 10-2558168, South Korea, 2023)
-
NM Series_ NANO SCR-Oxidation Multi-Function Catalyst
NANO manufactures and supplies SCR-Oxidation Multi-Function catalyst with various specifications depending on operating environments.
NM Series Product Specification
Type | Extruded Honeycomb | Layered |
---|---|---|
No. of cpsi | 35~160 | 45, 65 |
Pitch (mm) | 2.0~4.3 | 3.1~5.1 |
Specific surface area (m²/m³) | 807~1,699 | 900~1,200 |
Production capacity (m³/year) | 1,000 |
