회사소개Our Technology
The cause of fine particulate matter (PM 2.5) is mainly
due to NOx (Nitrogen oxides) in atmosphere.
NANO is specialized in
manufacturing SCR DeNOx catalyst to remove nitrogen oxides.
What is Nitrogen oxides(NOx)?
Nitrogen oxides(NOx)
Nitrogen oxide is a chemical compound that consists of nitrogen and oxygen and found in exhaust gas components.
It is a typical air pollutant that reacts with water in the air, volatile organic compounds, etc.
and causes acid rain and photochemical smog which are harmful to the living ecosystem.

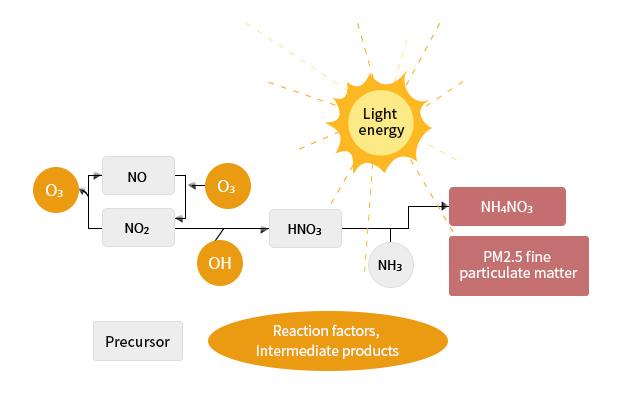

The process which nitrogen oxides
become fine particulate matter (PM2.5)
: Nitrogen oxides (NO, NO2) which generated in various combustion processes react with ozone (O3) in the atmosphere and produce nitric acid (HNO3). It is then converted to ammonium nitrate (NH4NO3) reacting with ammonia (NH3) which is an atmospheric alkaline substance.

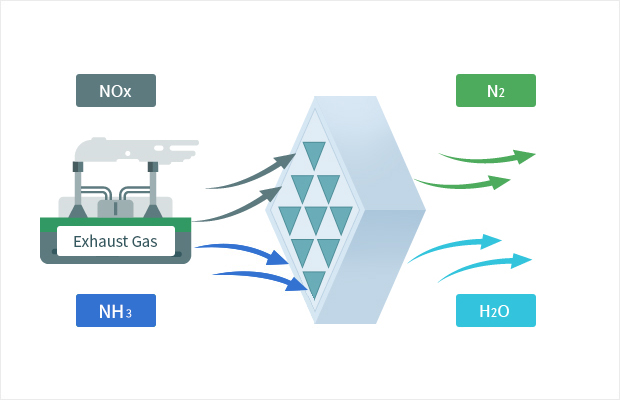

The process which NANO catalyst removes nitrogen oxides
Major DeNOx Reaction
NOx in exhaust gas stream converts to environmentally harmless nitrogen and water vapor by reacting with NH3 as passing through NANO catalyst layer installed in a SCR reactor.
-
Competitiveness of NANO
NANO is a KOSDAQ listed company.
NANO is a strong R&D driven company. -
Excellence of NANO
No.1 company contributing to remove fine particulate matter in Korea Korea No.1 SCR Catalyst Supplier for Thermal Power Plant.
World No.1 Marine SCR Catalyst Supplier. -
NANO Global Company
NANO operates four factories in Korea, China and Spain and runs the sales office in the US, Europe, Japan and China. -
Experties of NANO
Certificates Patents
Certificates
Certificate | Certification name | Certificate authority |
---|---|---|
ISO 9001 | Design, Development,Manufacture of Ceramics Catalyst of Material and Forming Products for Air-Purification. | Kiwa Cermet |
ISO 14001 | Design, Development,Manufacture of Ceramics Catalyst of Material and Forming Products for Air-Purification. | Kiwa Cermet |
ISO 45001 | Development, production andservice of SCR catalysts and molding products | Kiwa Cermet |
New and Excellent Product Certificate (NEP) | TiO2 Powder contained tungsten oxide for DeNOx SCR catalyst | Ministry of Trade, Industry and Energy |
New and Excellent Product Certificate (NEP) | Catalyst carrier forSCR DeNOx catalyst | Ministry of Trade, Industry and Energy |
New and Excellent Product Certificate (NEP) | Plate SCR DeNOx catalyst | Ministry of Knowledge Economy |
Korea New Technology Certificate (KT) | Ceramic carrier extrusion process technology using titanium oxide as main material | Ministry of Science and Technology |
Performance Certificate (EP) | SCR Catalyst (NH-series) | Small and Medium Business Administration |
REACH SVHC Free | EU New Chemical Substance Management System (REACH) SVHC Free Certification | KTR |
SCR maintenance certificates | SCR maintenance company forfive Korean electricity companies | Korean five electricity companies |
INNO-BIZ | Selected as a technologically innovative Small and medium company | Small and Medium Business Administration |
Confirmation of Venture Business Company | Venture Investment Company | Korean Venture Capital Association |
Company affiliated research institute Certificate | Company affiliated research institute Certification | Korea Institute for Advancement of Technology |
Certificate of Excellent Technology Company | Selected as a Excellent Technology Company | Korea Technology Finance Corporation |
Confirmation of parts and material specialized company | Certified as a parts and material specialized company | Ministry of Knowledge Economy |
Registration Certificate of Development Selected Product | SCR DeNOx catalyst (LNG power plant Application) | Korea Middle Power Co., Ltd. |
Certificate of product specific approved exporter | Certificate of product specific approved exporter | Daegu Customs |
Excellent Performance Certificate (EP) | SCR Catalyst (NP-series) | Ministry of SMEs and Startups |
Patents
Register No. | Date | Name of Patents | Country | Note |
---|---|---|---|---|
US6306361 | 2001.10.23 | Method for manufacturing photocatalytic titanium dioxide powder | U.S.A | Register |
10-0335068 | 2002.04.19 | Method for coating lubrication matter in subfaceofslide member have a consume resisting | Korea | Register |
10-0430405 | 2004.04.23 | Manufacturing method of titanium dioxide powder for photocatalyst. | Korea | Register |
CN1189400C | 2005.02.16 | 制备光催化的二氧化钛粉末的方法 | China | Register |
10-0564136 | 2006.03.20 | Method for producing titanium oxide particle and method for producing titanium oxide thin layer using the same | Korea | Register |
10-0575555 | 2006.04.25 | method of forming cathode material of lithium secondary battery | Korea | Register |
10-0641694 | 2006.10.26 | Manufacturing method of titania for extrusion forming of De-NOx catalyst | Korea | Register |
10-1042018 | 2011.06.09 | Manufacturing method of high density titanium dioxide powder for de-NOx catalyst | Korea | Register |
10-1226993 | 2013.01.22 | Method and apparatus for measuring SCR conversion efficiency | Korea | Register |
10-1246271 | 2013.03.15 | Method of recycling waste denitrification catalyst | Korea | Register |
10-1271105 | 2013.05.29 | Method of recycling a catalyst | Korea | Register |
10-1308496 | 2013.09.09 | Methods of manufacturing a honeycomb catalyst | Korea | Register |
10-1659818 | 2016.09.20 | Manufacturing mtehod of plate type selective catalytic reduction catalyst for deNOx and the plate type selective catalytic reduction catalyst | Korea | Register |
10-1700433 | 2017.01.20 | Titanium dioxide nanocomposites for Plate-type Selective Catalytic Reduction | Korea | Register |
10-1724233 | 2017.03.31 | Sheet type cartridge having excellent formability and air pollution reducing apparatus using the same | Korea | Register |
30-0919317 | 2017.08.11 | Catalyst carrier for reducing harmful gas | Korea | Register |
10-1791332 | 2017.10.23 | Catalyst wear resistance test device | Korea | Register |
10-1909231 | 2018.10.11 | Apparatus for manufacturing catalyst cartridge for selective catalytic reduction and method of the same | Korea | Register |
10-1952314 | 2019.02.20 | Manufacturing method and catalyst carrer of layered hexagonal selective catalytic reduction catalyst cartridge | Korea | Register |
10-2019-0097605 | 2019.08.09 | Structure of high-strength selective catalytic reduction catalyst and related manufacturing method | Korea | Application |
10-2045520 | 2019.11.11 | Including a roller bending machine manufacturing system of plate type selective catalystic reduction catalyst | Korea | Register |
